Gun Drills
Gun Drills
botek
Product Features
A gun-drilled deep hole provides the following advantages: good hole straightness; excellent surface roughness; hole diameter tolerance of approx. H7 to H9; and eliminating the need for reaming.
Usable in conjunction with dedicated gun drill machines, as well as in general-purpose machines such as machining centers.
Provided with two unique, differently shaped oil holes or a kidney-shaped oil hole to supply sufficient oil to the drilled surface and ensure stable deep hole drilling.
Capable of drilling a wide range of holes sized 0.5 to 51.20 mm in dia. Available in the following three different types: carbide solid type; brazed carbide head type; and indexable type. Wide customization available upon request to meet specific needs, such as chip breaker or coating, and enable more stable deep hole drilling.
Product line-up
Advantages of gun drilling
| Good hole straightness | One millimeter or less centerline deviation per normal drilling depth of 1,000 mm! |
|---|---|
| Small diameter variations | Capable of drilling with tolerance about H7 to H9! |
| Excellent surface roughness | Excellent surface roughness achieved thanks to burnishing effect of guide pad! |
| Shorter machining time | No step feeding required! |
Machinable range (manufacturing range)
| Machined hole diameter | φ0.5～φ51.20 |
|---|---|
| Machined hole depth |
|
Selectable combinations with processing machines
Usable in combination with a machining center or general-purpose power tool
* Capable of deep hole drilling using drilled guide holes instead of drill bushes (L/D = Max. 40)

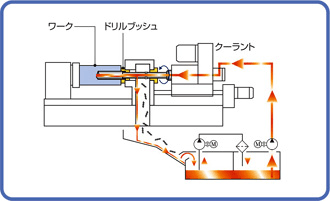

Cutting process by Gundrill Machine
* Enables non-stepwise deep hole drilling (L/D = 100 to 200).
About Botek GmbH
Botek GmbH is a German specialist manufacturer of deep hole drilling tools and notably is the world's largest manufacturer of gun drills. Botek products are used in the deep hole drilling industry around the world and, in recent years, for hole machining in the precision machining industry as well.
