Tool Length Measurement Instrument

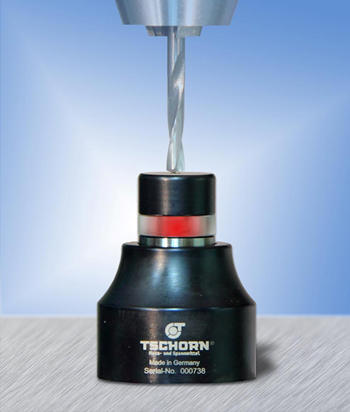

TSCHORN Zero Finder

TSCHORN

TSCHORN

Product Features

The TSCHORN zero finder allows tool detection signaling to be recognized from all directions with its highly visible red LED lamp, providing improved work efficiency.

A strong magnet is attached to the bottom of the body to firmly secure the zero finder when a magnetic workpiece is used. A conductive detector is adopted for high accuracy. The detector has a 2 mm stroke, preventing tool damage in the event of overrun. Repeatability is within ±1 μm.

TSCHORN zero finder overview

TSCHORN zero finder overview

Height accuracy
+5 μm −0μm
Measurement section diameter
φ19 mm
Body diameter
φ39 mm
Repeatability
±1 μm
Stroke
2mm
Supported cutter size
φ1 mm or larger
Battery
SR44 x 2
Weight
0.226 kg

Download TSCHORN zero finder catalog

About TSCHORN

TSCHORN is a German manufacturer that has been developing measurement instruments for more than 20 years. Taking pride in products "Made in Germany," the company adopts an integrated manufacturing system from parts production to assembly in Germany.
